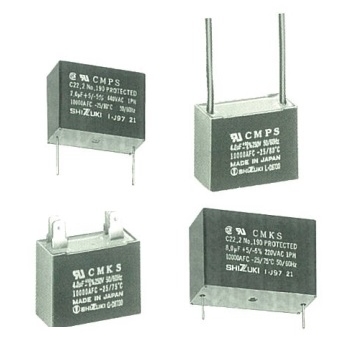

Type CMPS
Self-healing AC Capacitors with protective mechanism (max. permissible temp 80℃) recognized to UL
Type CMKS (this type is an import product from Shizuki Japan)
Self-healing AC Capacitors with protective mechanism (max. permissible temp 75℃), recognized to UL
Features
- High Safety
Type CMPS and CMKS capacitors incorporate protective mechanism to achieve high safety. The protective mechanism disconnects the capacitor from the circuit to prevent fire or smoke, should a breakdown occur in the capacitor.
- UL recognized to 10000 ampere fault current
Both types are UL recognized to 10000 ampere fault current, which means that the capacitor is safe under fault condition in a circuit having the short circuit capability of 10000 amperes.
- Two types available; 75℃ and 80℃ max temperature rating
- Type CMPS (maximum permissible temperature 80℃) uses metallized polypropylene film, and type CMKS (maximum permissible temperature 75℃) uses the combination of metallized polypropylene film plus metallized polyester film.
- Type CMKS is best suited for the applications which require small-sized capacitors, and type CMPS is primarily designed for the operation at a high temperature of a high frequency.
- Various terminal styles recognized to UL Various terminal styles including AMP 187, AMP250, solder lug and stranded wire are UL recognized.
|
|

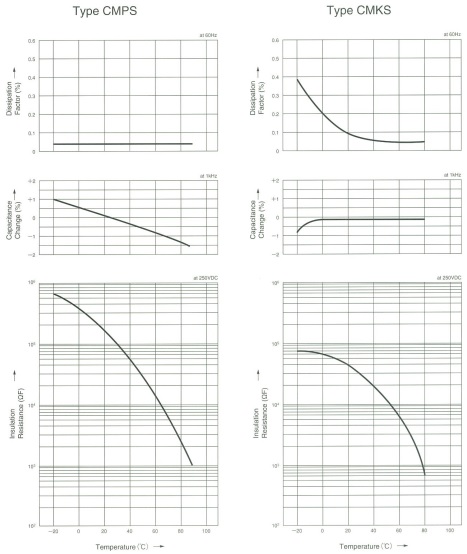

Temperature Characteristics
Type CMPS-R Capacitor for home appliances.
Feartures
- Rated Voltage: 450 VAC
- Capacitance Range: 1uF-8uF
- UL approved and certificated by IEC
- Self-Protected
- Easy to install
|
|
|

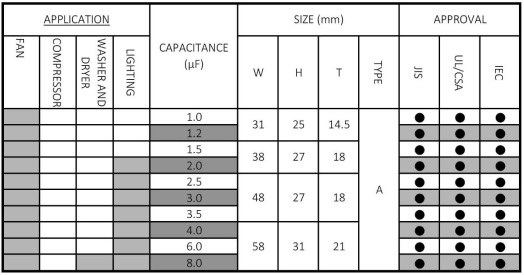

Standard Dimensions

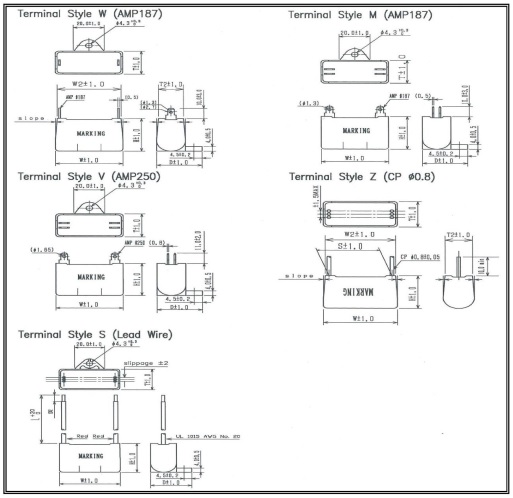

Terminal style of type CMPSR
*** The above informationmay possibly differ from the latest version. Please feel free to contact us for further support.
