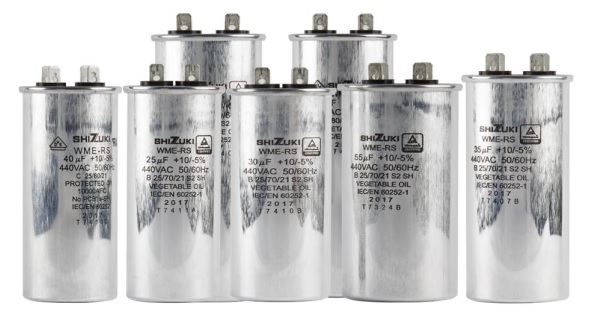

RS Series round film capacitor

Type WME-RS Rating voltage: 200-500VAC Capacitance range: 4-100MF Oil Impregnated Self-Healing metallized film Protective Device UL, IEC, CE, TUV Standard Applicable for air conditioning compressor, motor, and etc.

Features

• Uses plastic film dielectric
  Coupled with our unique technology, the self-healing metallized plastic film dielectric provides significantly high reliability.
• Protective device or protective mechanism
  The capacitors are provided with the protective device or protective mechanism.
• Recognized to UL and IEC
  Not only UL recognized to 10000 ampere fault current but also approved to IEC, type RS Capacitor feature high safety and reliability.
• Housed in a metal case or plastic resin case
  The capacitors are housed in a metal case
• Dual designs
  Containing of two capacitance in one case are also available.

Applications

• Motor run
  The capacitors are ideal for various motor application in washing machine, pump, and electric tools.
• Air conditioning compressors
  The capacitors can be used for air conditioning compressors with any ratings.
• Other Applications
  Other applications include various industrial equipment such as lighting fixtures, photo-copiers, etc.

Technical Information

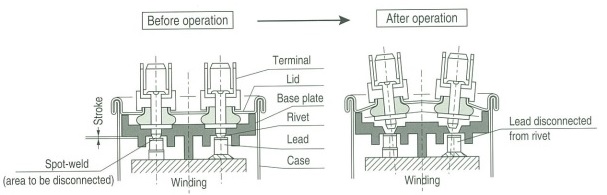

• Protective Device (type WME-RS)
  Should a dielectric breakdown occur, the cover will bulge to move upward the terminals mounted on the cover because of the buildup of the capacitor internal pressure. The connection between the terminal and the capacitor winding will be opened, and the capacitor will be disconnected from the electrical circuit.

*** The above informationmay possibly differ from the latest version. Please feel free to contact us for further support.
